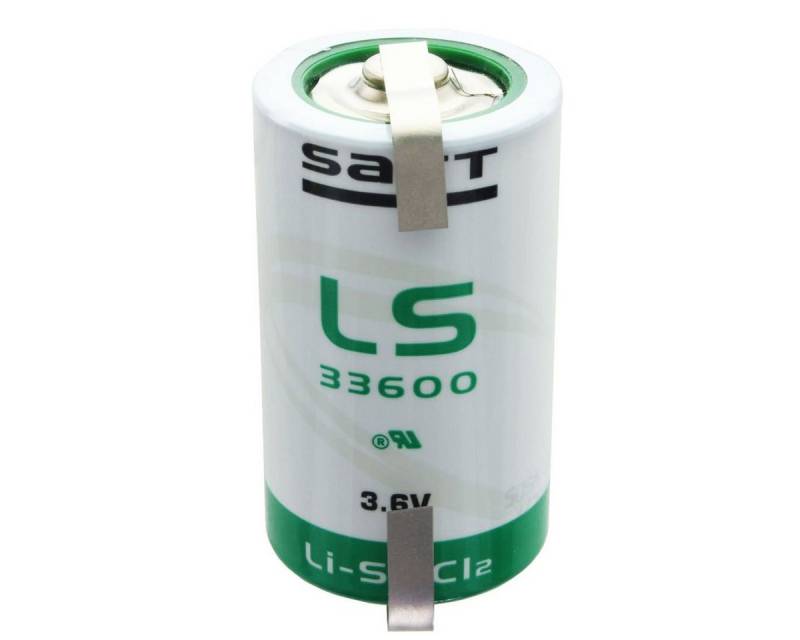

Saft SAFT LS33600 Lithium Batterie 3.6V Primary mit Lötfahne U-Form Batterie, (3,6 V)

Produktbeschreibung

Saft LS33600 Lithium Thionyl Chloride Einweg Batterie
3.6V Primary lithium-thionyl chloride (Li-SOCl2) Size - R20 -D -Mono

• mit Lötfahne in U-Form
• High and stable operating voltage
• Low self-discharge rate (less than 1% after 1 year of storage at +, 20°C)
• Stainless steel container, Hermetic glass-to-metal sealing
• Built-in safety vent, Finish with or without flat positive end
• Non-flammable electrolyte, Compliant with IEC 86-4
  safety standard and EN 50020 intrinsic safety standard
• Underwriters Laboratories (UL) Component Recognition
  (File Number MH 12609)
• Restricted for transport (Class 9)
• For applications requesting good voltage response and operating life in
  -60°C/+, 85°C environments.
• WarningFire, explosion and severe burn hazard. Do not recharge, short circuit, crush, disassemble, heat above 100°C (212°F), incinerate, or expose contents to water. Do not solder directly to the cell.

Main applications: Radiocommunication and other military applications, Alarms and security systems, Beacons and emergency location, transmitters, GPS, Metering systems, Sonobuoys, Micropipettes.

Technische Daten Saft LS 33600:

System: Primary lithium-thionyl chloride (Li-SOCl2) (Nicht wiederaufladbar)
Anschlussart: mite Lötfahnen, Spannung: 3,6 Volt, Kapazität: 17000mAh
Maße (DxH): 61x33mm, Größe: D/Mono, Gewicht: 90Gramm
