Rockford Fosgate HD9813RGU-STAGE2 Stage2 kit 1998-2013 Harley-Davidson Road Glide Ultra Außenlautsprecher

Produktbeschreibung

Rockford Fosgate HD9813RGU-STAGE2 | Stage 2 audio kit 1998-2013 für Harley-Davidson Road Glide Ultra motorcycles (Shark Nose)

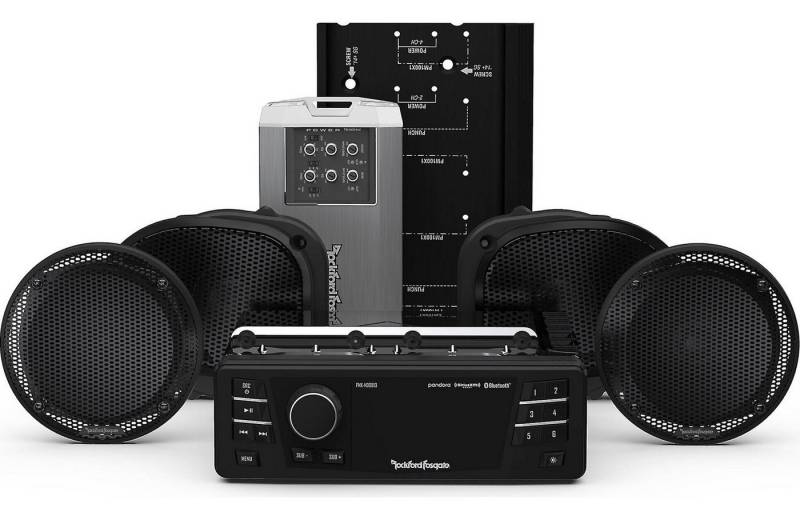

Stage 2 audio kit for 1998-2013 Harley-Davidson Road Glide Ultra motorcycles (Shark Nose): includes receiver, two sets of speakers, and 4-channel amp

Boost the sound on your Road Glide

Want better sound on your 1998-2013 Harley-Davidson® Road Glide® Ultra? Rockford Fosgate',s Power Series Stage 2 kit features a rugged digital media receiver, fairing and Tour Pak speakers, and a compact, weather-resistant 4-channel amplifier with an installer-friendly amplifier kit. It',s an outstanding upgrade for your Road Glide Ultra.

A receiver designed for Harleys

Rockford Fosgate',s PMX-HD9813 digital media receiver sports cool features like built-in Bluetooth connectivity, Pandora® streaming, SiriusXM® satellite radio capability (tuner sold separately) and a USB port. This weather-resistant receiver fits the factory mounting brackets and plugs right in to your Harley',s wiring harness. The big control knob make it easier to manage your music (even when you',re wearing gloves), and you can also control receiver functions using the factory handlebar controls. You',ll be able to see what',s playing on the 3” color TFT display, which even has a helpful “night mode” for evening travel.

Phenomenal sound for your fairings

Rockford Fosgate',s TMS6RG 6-1/2", speakers fit right into the speaker locations in the shark nose fairing on your Road Glide Ultra. These rugged, weather-resistant coaxial speakers will really boost your bike',s audio quality, packing a lot of sonic punch into a compact package. They install easily using your Harley',s factory hardware and the included grille assemblies.

Tune up your Tour Paks

The Rockford Fosgate TMS5 5-1/4", speakers are designed for the Tour Pak speaker locations on your Road Glide Ultra. These rugged, weather-resistant full-range speakers will really boost your bike',s sound, packing a lot of sonic punch in their compact frames. You',ll install them using factory hardware and the included grille assemblies.

A compact, powerful amp

The Power Series TM400X4ad 4-channel amplifier uses Rockford Fosgate',s proprietary Class AD technology to draw big power with less current draw from your bike',s electrical system. It',s made for the road, with conformal-coated circuitry and stainless steel hardware. This compact amp rocks hard and runs cool, even when it',s tucked into a tight space. You',ll install the amp using the included RKFHD9813 kit, which includes everything you need for the job, from wiring harnesses right down to the screws.

Motorcycle compatibility note: This kit is designed to work with 1998-13 Road Glide® Ultra touring bikes with the Shark Nose fairing only.

Bluetooth note: Use of this receiver',s Bluetooth features will depend upon your phone',s Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

This digital media receiver will not play CDs.

Product highlights:

• system includes digital marine receiver, two 6-1/2", fairing speakers, two 5-1/4", Tour Pak speakers, a 4-channel amp, and an amp wiring kit

Rockford Fosgate PMX-HD9813 digital media receiver (does not play CDs)

• all-weather digital media receiver with AM/FM tuner
• designed for select 1998-13 Harley-Davidson motorcycles
• uses factory mounting points and factory connectors and works with factory handlebar controls
• built-in Bluetooth connectivity
• built-in iPod, iPhone, and iPad control
• SiriusXM Ready (requires SiriusXM SXV300 tuner, sold separately)
• 3", color TFT display with day/night mode
•

Rockford Fosgate TMS6RG 6-1/2", full-range fairing speakers

• designed for the speaker locations in the Shark Nose fairing on 1998-2013 Harley-Davidson Road Glide models
• Element-Ready design is weather- and water-resistant
• power handling: 75 watts RMS (150 watts peak)
•

Rockford Fosgate TMS5 5-1/4", full-range Tour Pak speakers

• designed for 1998-2013 Harley-Davidson® rear Tour Pak locations
• Element-Ready design is weather- and water-resistant
• power handling: 65 watts RMS (130 watts peak)
•

Rockford Fosgate TM400X4AD Power Series marine/powersports 4-channel amplifier

• Class AD amp technology
• 100 watts RMS x 4 at 4 ohms (400 watts peak)
• conformal-coated circuit board — suitable for power sports and marine applications
• twin cooling fans and real-time thermal sensing
•

Rockford Fosgate RFKHD9813 installation kit

• install a Rockford Fosgate compact-chassis amplifier in select 1998-2013 Harleys
• everything you need to install your new amp

What',s in the box:

• This system contains 5 individually packaged items:
• PMX-HD9813:
• Digital media receiver
• Pre-out harness
• Installation &amp, Operation booklet
• TM400Xad:
• Four-channel amplifier
• Two 14", Input harnesses (4-pin Molex connector to 2 female RCAs)
• Two 8", Speaker output harness (4-pin Molex connector to bare wire)
• Setup disc CD-ROM
• Amplifier Quick Setup sheet
• Certificate of Performance Verification
• TMS6RG:
• Two 2-way speakers
• 2 Grilles (installed)
• Six 3/4", Mounting screws
• Installation manual (English/ French/ Spanish/ German/ Italian)
• TMS5:
• Two 2-way speakers
• 2 Grilles
• Eight M3.5x25mm Machine screws (2mm Allen head)
• Installation manual (English/ French/ Spanish/ German/ Italian)
• RFK-HD9813:
• Amplifier mounting plate/heat sink
• 3 Support brackets
• Power cable assembly with 5', 8-gauge power/ground wire (in-line fuse holder on power wire with 60A Maxi fuse inserted) and 15", remote wire
• 10', Rear cable assembly
• 33", Front output cable
• 23", Front input cable
• 35-Pin Plug w/ 22", rear speaker harness
• Two 4", amp output Y-adapter harnesses
• Eight 8", wire-ties
• Two 3/4", threaded posts
• Eight 10mm counter-sunk screws
• Four 8mm screws
• Instruction manual

1. Rockford Fosgate PMX-HD9813 | Autoradio für Harley-Davidson Motorräder mit Bluetooth und 3", TFT Display

Direkter Ersatz für digitale Medienempfänger für ausgewählte Harley-Davidson®-Motorräder von 1998 bis 2013. Verfügt über ein 3-Zoll-Vollfarbdisplay mit Ultrahelligkeit, Tag / Nacht-Modi und übergroßen Tasten für eine einfache Steuerung. Die Plug-and-Play-Installation mit dem OEM-Bordnetz erfordert keine zusätzliche Verkabelung oder Abschaltung vorhandener werkseitiger Kabelbäume oder Komponenten.

ROCKFORD FOSGATE Radio für Harley Davidson PMX-HD9813Headunit
Digital Media Receiver HD Radio

• 3", Full Color TFT Display mit UKW Radio
• Plug &amp, Play-Installation mit elektrischen OEM-Anschlüssen
• Bluetooth-Streaming-Audio (A2DP und AVRCP)
• Apple- und Android-kompatibel
• USB Eingang mit Ladefunktion • AUX-Eingang (L/R)
• Upgradefähige Firmware und Bluetooth-Software über USB
• Spritzwassergeschützt nach IPX6
• Kompatibel mit PMX-BTUR Fernbedienung

Kompatibel mit:
StreetGlide (06-13), RoadGlide(98-13), ElectraGlide(98-13)*
*Nicht kompatibel mit Werkseitig eingebauten verstärkten Systemen,
CB, Intercom, hinteren Lautstärkereglern, hinteren Lautsprechern von
1998-2005 Ultra und Werkseitig ausgestatteten Satellitenradiosystemen.
**Antenne nicht im Lieferumfang enthalten (PMX-ANT)

2. Rockford Fosgate TMS6SG | Lautsprecher für vordere Verkleidung (Bat Wing) Harley-Davidson

Merkmale:

• 16,5 cm Lautsprecher für Harley-Davidson™
• Belastbarkeit: 150/75 Watt MAX/RMS
• Street Glide (2006-2013)
• Electra Glide (1998-2013)
• Schalldruck: 91 dB (1W/1m)
• 2 x 16,5 cm Power Koax Lautsprecher
• 25 mm mit Phase Plug
• Santopren VAST Sicke
• Inhalt: 1 Paar (2 Stück)

3. Rockford Fosgate TM400X4AD - MARINE 4-Kanal Power Verstärker ENDSTUFE mit 400 Watt RMS

Technische Daten:

• 4-Kanal Class AD Verstärker (800 W)
• 4 x 100 / 100 Watt RMS @, 4 / 2 Ohm oder 2 x 200 Watt RMS gebrückt @, 4 Ohm
• 4 x 200 / 200 Watt RMS @, 4 / 2 Ohm oder 2 x 400 Watt RMS gebrückt @, 4 Ohm
• High-/Lowpass 50-250 Hz
• 0-18 dB Bass Boost
• 0-14 dB Treble Boost
• C.L.E.A.N.-Setup
• High Level Inputs mit Auto Turn On
• Optional PLC2 Bass-Remote mit Clipping-LED
• 75% Wirkungsgrad
• Abmessungen: 108 x 41 x 211 mm

4. ROCKFORD Fosgate Amp Installation Kit for Harley-Davidson RFKHD9813

Das Montageset enthält Grundplatte, Kühlkörper und Kabelsatz zur Montage kompakter Power oder Punch Verstärker auf Harley-Davidson™ der Baujahre 1998-2013.

5. Rockford Fosgate TMS5 | 13 cm 2-Wege-Lautsprecher mit 130 Watt (RMS: 65 Watt) Harley-Davidson

• Lautsprecher für Tour-Pak* (98-13) Harley-Davidson™ 13 cm
• Leistung 65 W RMS / 130 W max.
• 91 dB (1W/1m)
• 2 x 13 cm Power Koax Lautsprecher
• 25 mm Hochtöner • Santopren VAST Sicke
• * Die Installation bei CVO™ und Screaming Eagle™ Modellen erfolgt nicht per Plug &amp, Play und muss geändert werden
